Strengthening of Steel, Concrete, and Masonry Structures with FRP Composites

Strengthening of Steel, Concrete, and Masonry Structures with FRP Composites: Advantages, Causes, Methods, and Design & Execution Considerations Based on International Standards

Introduction:
Structural strengthening with Fiber Reinforced Polymer (FRP) composites is a modern and efficient technique for upgrading and retrofitting steel, concrete, and masonry structures. FRP systems are composed of high-strength fibers (such as carbon, glass, or aramid) embedded in a polymeric resin, which are bonded externally or internally to structural elements.

Advantages:

• High strength-to-weight ratio and minimal added weight
• Excellent corrosion and chemical resistance
• Rapid, non-intrusive installation and minimal disruption to service
• Suitable for complex shapes or limited access areas
• Improved seismic, flexural, and shear resistance
• Long-term durability and low maintenance requirements
• Preservation of architectural and structural integrity without significant enlarging of cross-sections

Causes for Strengthening with FRP:

• Structural deficiencies due to design or construction errors
• Deterioration from corrosion, aging, environmental exposure, or fire
• Increased load demands (change of use, additional equipment, higher occupancy)
• Repair of damaged areas from mechanical impact or earthquakes
• Compliance with new or updated construction codes

Methods of Application:

• Wrapping (confinement) of columns, beams, or walls: Externally bonding FRP sheets or fabrics to provide additional confinement, flexural or shear capacity

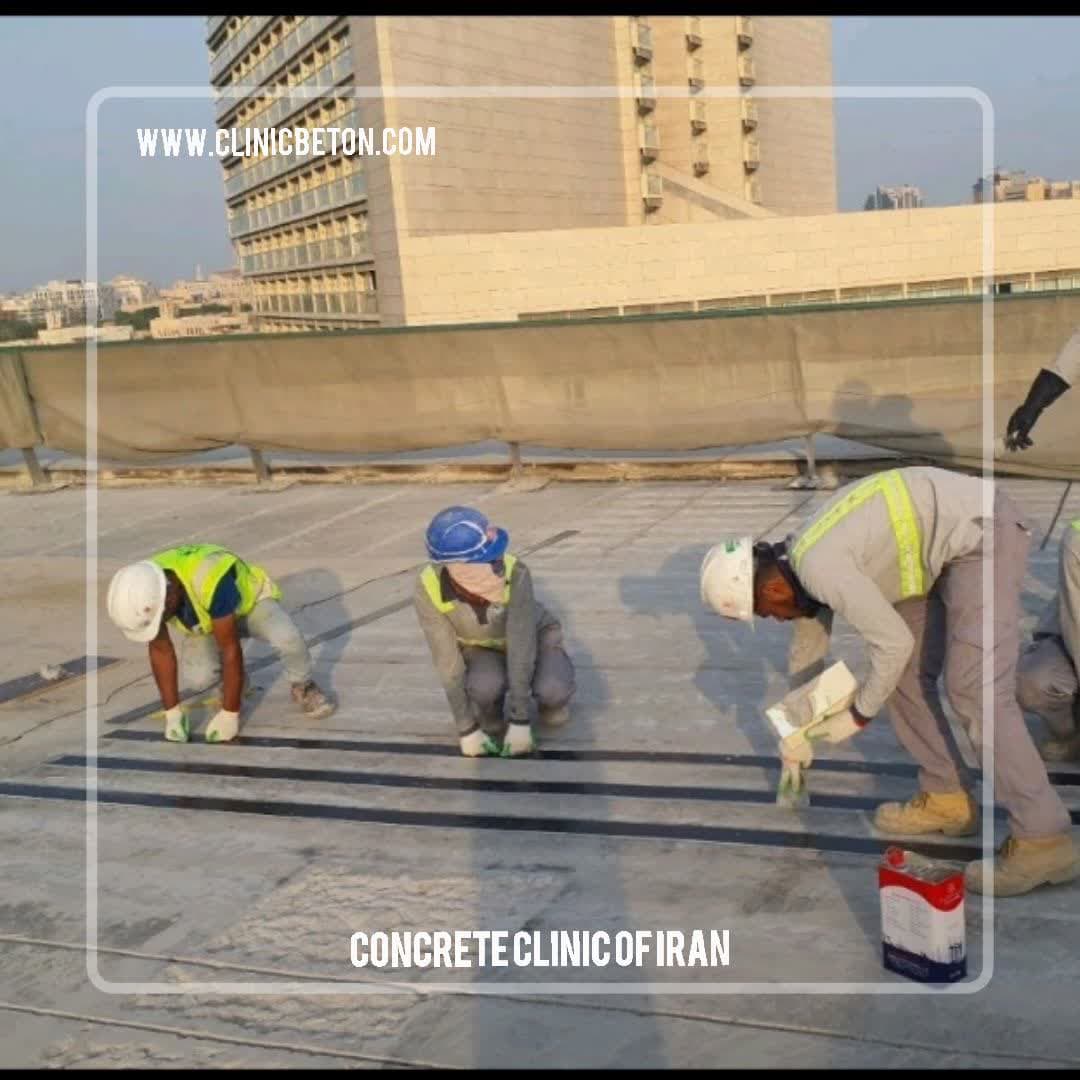

• Surface bonding/lamination: Gluing FRP laminates to surfaces to improve flexural strength of slabs, beams, steel, or masonry members
• Embedding FRP rods or bars: Internal reinforcement in grooves cut into concrete, masonry, or even steel
• Localized strengthening: Targeted application on critical regions such as joints, connections, or areas of damage

Design and Execution Considerations (Based on International Standards such as ACI 440.2R, EN 1504, fib Bulletin 14):

• Assessment: Conduct full structural evaluation, material testing, and compatibility analysis
• Design:
  • Determine load demands and desired structural improvement
  • Select suitable type of FRP (carbon, glass, aramid) and resin system
  • Calculate required thickness, orientation, and anchorage length
  • Ensure compatibility with existing materials and structure
• Surface Preparation:
  • Proper cleaning, smoothing, and priming of the substrate
  • Repair of any significant cracks or defects before bonding FRP
• Installation:
  • Apply adhesive resins as per manufacturer’s guidelines
  • Place FRP sheets, strips, or bars with correct orientation and overlap
  • Ensure bubble- and void-free contact
  • Curing under suitable environmental conditions
• Quality Control:
  • On-site inspection and testing of bond/adhesion
  • Compliance with project specifications and manufacturer recommendations
• Long-Term Monitoring:
  • Periodic inspections for delamination, mechanical damage, or environmental degradation

References:

• ACI 440.2R “Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures”
• EN 1504-4 “Products and systems for the protection and repair of concrete structures – Structural bonding”
• fib Bulletin 14 “Design and Use of Externally Bonded FRP Reinforcement for RC Structures”
• IStructE “Guidance Note on the Use of FRP for Structural Strengthening”
