Plastic Formwork for Concrete
Manufacturer: Clinic Beton Iran Group, RBS-CONTECH
Website: www.clinicbeton.com | www.rbs-contech.com
Contact: clinicbeton.com@gmail.com | Tel: +98 21 88070173, +98 21 88584906
Product Description

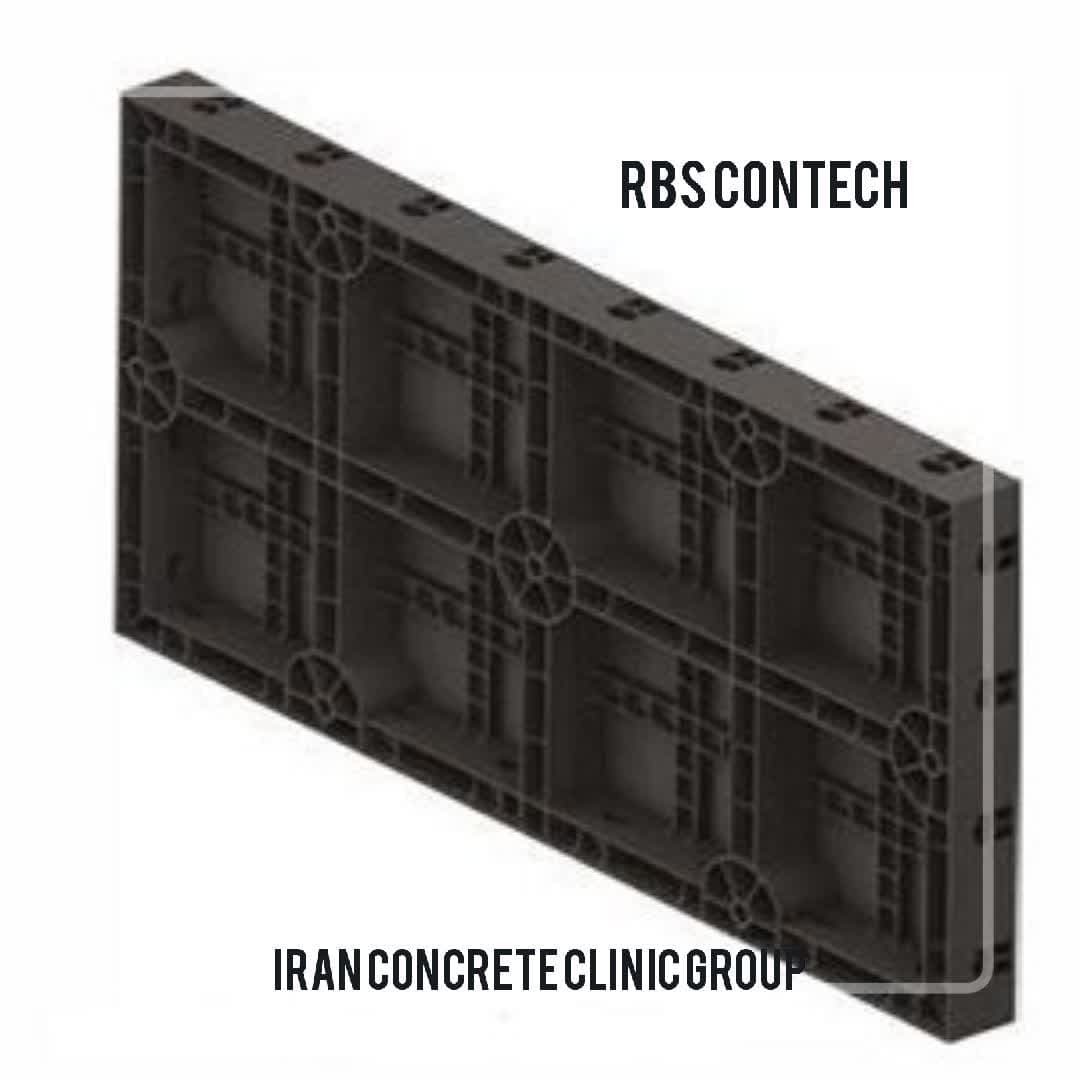

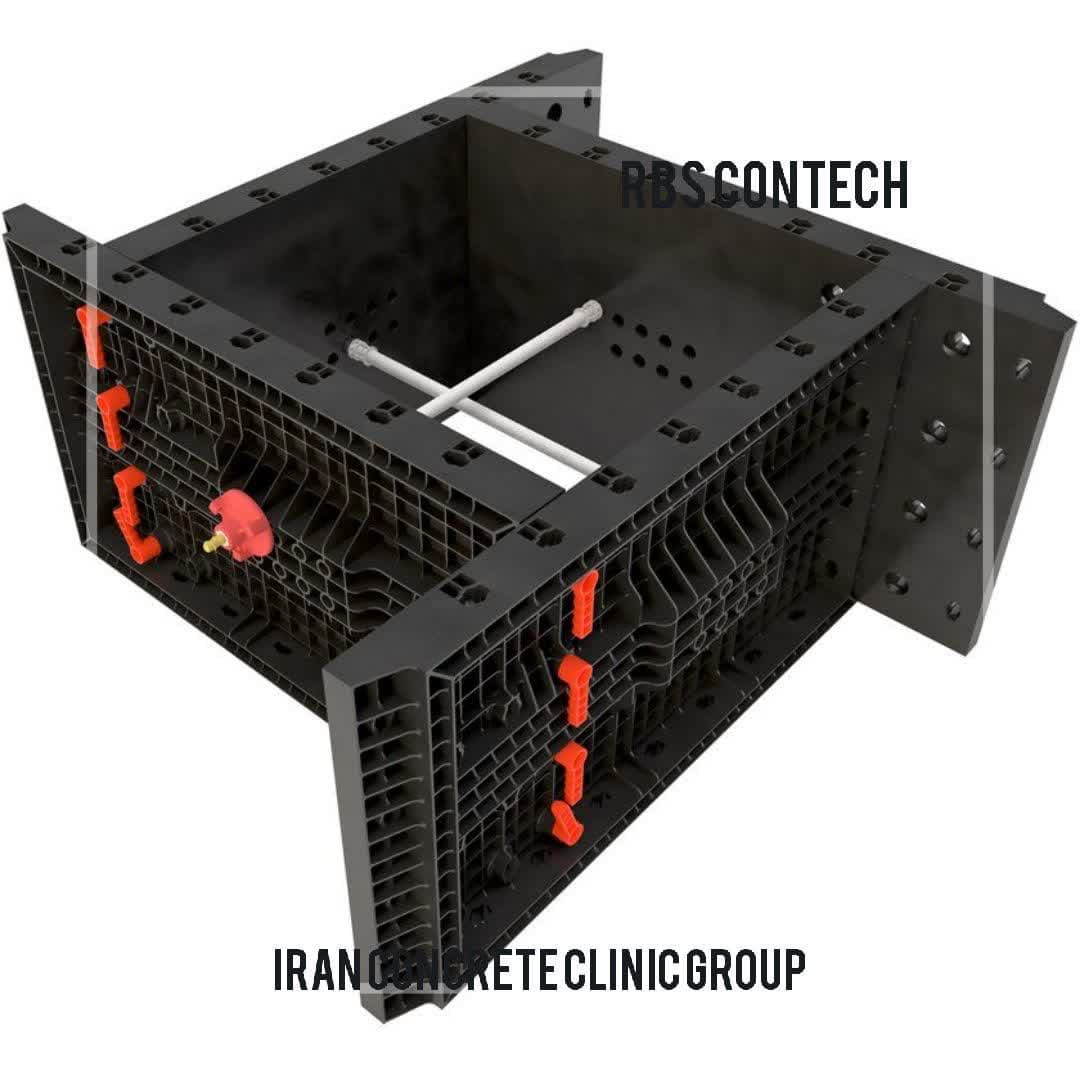

Plastic Formwork Systems by Clinic Beton Iran are modular, lightweight, and reusable shuttering systems designed for cast-in-place concrete structures. Made from high-quality, durable polymers, these formworks replace traditional wooden or steel forms and offer superior durability, consistent finishes, and faster installation/removal.
Technical Data
| Property | Value |
|----------------------------------|---------------------------------------|
| Material | Virgin PP/Synthetic Polymer Composite |
| Color | Black / Grey / custom |
| Size (typical panel) | 600 × 400 mm, 600 × 600 mm, others |
| Panel Thickness | 50 mm |
| Weight | 2.5–4.5 kg/panel |
| Bending Strength | ≥ 45 MPa |
| Flexural Modulus | ≥ 1350 MPa |
| Impact Resistance | Excellent (no shattering) |
| Reusable Cycles | 80–100 times (depends on handling) |
| Surface Finish | Smooth, non-stick, anti-adhesive |
| Maximum Concrete Pressure | Up to 60 kN/m² |
| Water Absorption | < 0.05% |
| Chemical Resistance | High (Acid & Alkali) |
| Working Temperature | -10°C to +60°C |
| UV Resistance | Yes (on demand) |
| Fire Class | B2 (on request) |
| Assembly | Easy, manual; interlock system |
| Edge Protection | Reinforced ribs, protected corners |
| Cleaning | Water jet, mild detergent |
Key Advantages
Lightweight: Easy handling, labor cost reduction.
High Durability: Up to 100 reuses, no moisture or rot.
Smooth Finish: Minimizes need for post-casting finishing.
Fast Setup/Removal: Modular panels reduce construction time.
Eco-Friendly: 100% recyclable.
Non-stick Surface: Easy demolding, reduces form-release agent usage.
Dimension Stability: No warping, swelling, or sagging.
Custom Shapes: Panel size and form flexibility per project needs.
Applications
Slab, column, and beam formworks
Shear walls, retaining walls
Precast panel production
Foundations and pile caps
Civil infrastructure projects (bridges, tunnels, reservoirs)
Instructions for Use
Assembly: Lay out and connect panels using built-in locks or clamps.
Support: Use standard props and supports as per load chart.
Pouring Concrete: Suitable for all grades of standard ready-mix concrete.
Stripping: Remove carefully to avoid damaging panels; use release agent if required.
Maintenance: Clean after each use; avoid impact damage.
Storage & Transport
Store on flat surface in dry, shaded area.
Avoid direct sunlight for long-term storage.
Stack panels flat, not more than 1.5 m high.
Contact for Detailed Technical Support or Project-specific Submittals:
Email: clinicbeton.com@gmail.com
Tel: +98 21 88070173, +98 21 88584906
For official datasheets, certificates, or compliance documents, contact Clinic Beton Iran directly or visit: https://www.clinicbeton.com
