Applications and Installation Method of PVC Waterstops, and Standards
Applications of PVC Waterstops

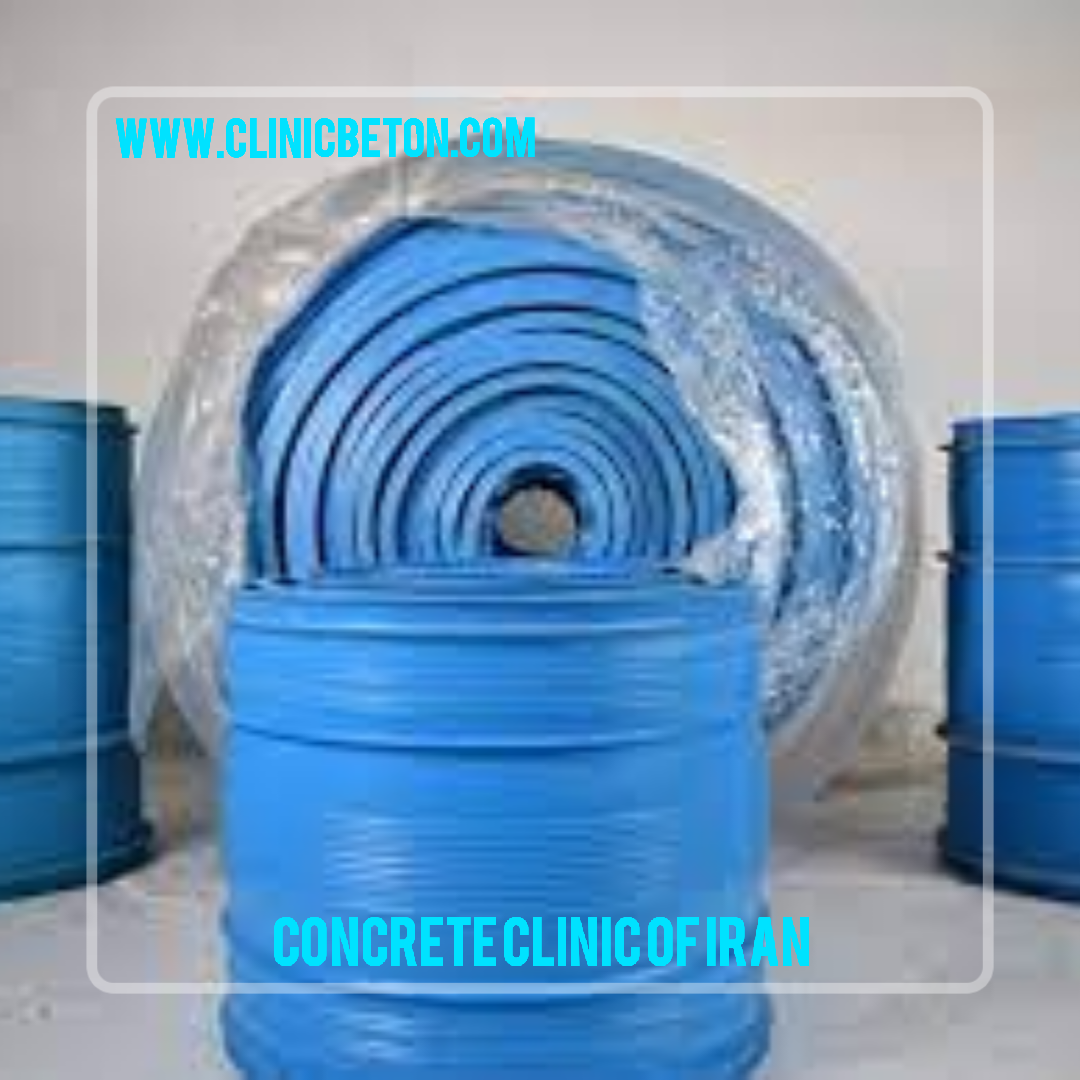

PVC waterstops are essential elements in concrete structures designed to prevent the migration of water through construction joints, expansion joints, and contraction joints. Their primary uses include:
Water Retaining Structures: Such as water tanks, reservoirs, swimming pools, and dams.
Underground Structures: Including basements, tunnels, subways, and retaining walls.
Sewage and Treatment Plants: For protecting concrete joints from water ingress or chemical attack.
Bridges and Parking Decks: To seal movement joints from water infiltration.
Hydraulic and Marine Structures: Where reliable joint sealing is critical against hydrostatic pressure.
PVC waterstops are preferred due to their flexibility, resistance to a wide range of chemicals, ease of handling, and long-term performance.
Installation Method of PVC Waterstops
Selection:
Choose the appropriate type and profile of PVC waterstop (central bulb, dumbbell, ribbed, etc.) according to the joint movement type (expansion, contraction, construction joint) and design specifications.
Placement:
In Construction Joints:
Position the waterstop so that it is half-embedded in the first concrete pour.
Fix it securely using metal clamps, wires, or dedicated waterstop fixers to avoid displacement during concreting.
In Expansion or Movement Joints:
Place the waterstop at the center of the joint, ensuring both sides are securely anchored in fresh concrete.
Splicing:
PVC waterstops are joined end-to-end using heat welding (hot knife or thermal welding equipment) to create leak-proof joints.
Ensure all factory-made junctions and on-site splices are fully fused and free of voids.
Pouring Concrete:
Carefully pour concrete on both sides of the waterstop.
Use vibrators gently near the waterstop to eliminate voids and achieve full embedment without displacing the waterstop.
Inspection:
Ensure that the waterstop is centered, straight, clean, and free from folds or waves before and during concrete placement.
Standards for PVC Waterstops
Several international standards regulate the material quality, physical properties, installation, and performance of PVC waterstops, including:
ASTM D4716: Standard Test Method for Determining the (In-plane) Flow Rate per Unit Width and Hydraulic Transmissivity of a Geosynthetic Using a Constant Head.
ASTM D412: Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension (for tensile strength and elongation).
BS 2782: Methods of Testing Plastics—specifies various physical properties of PVC waterstops.
DIN 18541: Waterstops Made of Plastics for Waterproof Concrete Structures—specifies design, junctions, and installation.
ACI 350.2R: Concrete Structures for Containment of Hazardous Materials—provides guidelines for waterstops in liquid-retaining concrete structures.
Quality PVC waterstops should exhibit high tensile strength, good elongation at break, resistance to chemicals, and excellent durability under hydrostatic pressure.
Summary
PVC waterstops ensure the water tightness of vital concrete joints in various civil, industrial, and infrastructure projects. Proper selection, precise installation, heat-welded joints, and compliance with international standards are essential to guarantee effective long-term performance.
