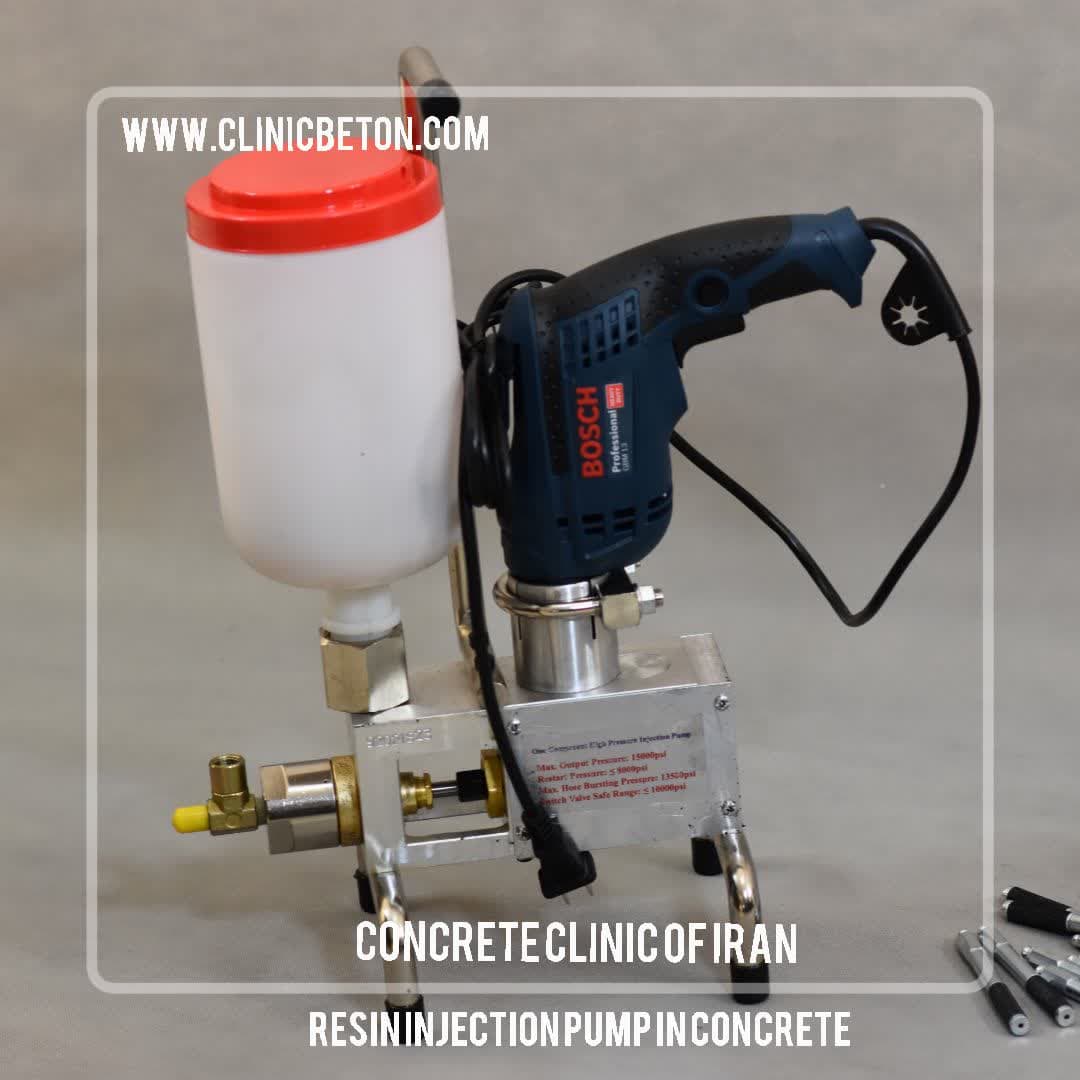

Epoxy and polyurethane resin injection pump
Single-component epoxy and polyurethane resin injection pump and packer
Based on ACI E706 standard
Description:
Pumps and packers are specialized equipment for repairing cracks in concrete structures. Since the most reliable standards in the world know the best way to repair cracks in the structural system or water cracks is injection of epoxy resin and polyurethane, therefore it is necessary to use pump and packer equipment to ensure that the cracks are filled. This equipment applies resins under pressure inside the cracks and ensures the correct execution of the work.
Implementation of drilling injection pump and technical specifications:
• With a 600 watt drill for injection
• Has a high pressure hose
• Has a strong pressure gauge
• Maximum pressure of 15 bar
• Safe pressure: 13.5 bar
• Hose length: five meters
• Drill power: 220v/600w
• Safe range of the switch: 10000psi
Indications:
• Repairing cracks in the wall, foundation, roof, bridge and slabs
• Repairing cracks in concrete columns and beams
• Negative pressure sealing of concrete structures
• Crack repair in concrete areas
Specifications of pump and packer:
• Single component
• Pressure up to 15 bar
• Plastic tank material
• Tank capacity 2 liters
• Packer length 8, 10 and 13 cm
• Aluminum packing material
Maintenance and cleaning:
Equipment should be cleaned quickly with thinner 10000 immediately after use. If the resin in the equipment is not cleaned, it will dry and cause damage to the pump.
Quality and method of use:
All the products offered by the technical and specialized concrete clinic of Iran are in accordance with international standards. To get acquainted with the use of this pump and the implementation method, contact the technical department of Iran Concrete Technical and Specialized Clinic or refer to the relevant standards.
