PVC WATERSTOP
Sealing tape to prevent water from passing through executive and expansion joints
Description:
Special waterproofing tape to prevent the passage of water in executive and expansion joints in different designs and dimensions for different needs, the water stops produced by Rayehe :Beton Sabz Company can be evaluated with the following standards
ASTM D 412,ASTM D 2240,ASTM D 570,ASTM D 572,ASTM D 624, ASTM D 638 , CRD C 570 , CRD C 572 , CRD C 573
Features and benefits:
• Higher than standard tensile strength
• Easy installation in the temperature range of -10 to +70 degrees Celsius
• High flexibility
• Resistance to alkaline pH according to CRD C 572 standard
• Having a life equal to the life of the structure
Application:
• Preventing the passage of water in executive and expansion structures
• Dams, reservoirs, water channels, tunnels and...
•hydraulic structures
Types and method of choosing water stop:
Waterstops are generally divided into two categories: flat waterstops (to be used in executive seams) and perforated waterstops (to be used in expansion joints), which can be wall or floor based according to the needs of the project.
After choosing the waterstop, its width and thickness are selected according to the height of the structure and the thickness of the concrete.

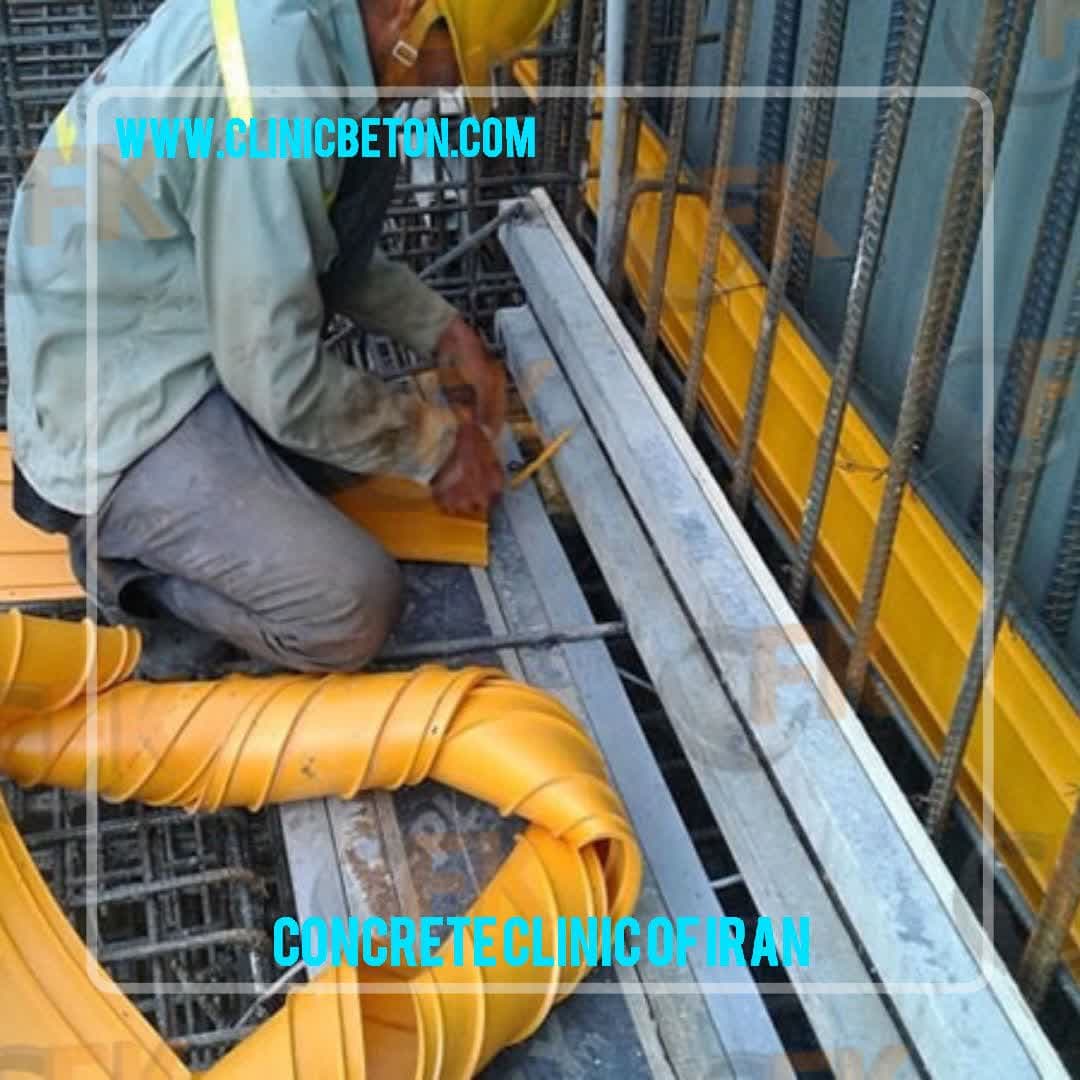

Installation Method:
• Place the flat waterstop in the place where the concrete break is expected, so that half of the width of the waterstop is placed in the initial concreting and the other half in the subsequent concreting.
• The procedure is the same for the installation of the holed waterstop, with the exception that the hole of the waterstop is placed exactly in the predicted place of the Anisat seam.
• Use clamps designed for this purpose to connect and fix Waterstop in structures.
• Each meter length of waterstop requires 5 clamps to connect to the armature, which are placed as 3 upper clamps and 2 lower clamps.
|
Waterstop technical specifications
|
Standard
|
Green Concrete Scent Waterstop
|
Standard demand
|
|
Shore-A hardness
|
ASTM D 2240
|
73-78
|
73 - 78
|
|
Tensile strength in the length direction
|
ASTM D412,CRD C572
|
14-15MPa
|
12.17 MPA
|
|
Elongation in length direction
|
ASTM D412,CRD C572
|
320-340%
|
300 %
|
|
Tensile strength in the width direction
|
ASTM D412,CRD C572
|
13-14MPa
|
12.17 MPA
|
|
Increase in length in the direction of width
|
ASTM D412,CRD C572
|
300-315%
|
300 %
|
|
Resistance in alkaline environment
|
CRD C572
|
It matches
|
during the standard
|
|
Special Weight
|
ASTM D 792
|
At least1.3
|
1.3
|
|
Water absorption percentage
|
|
Half a thousand
|
one in a thousand
|
Connecting two ends of Waterstop:
It is possible to weld the two edges of the waterstop to each other by hot and cold welding methods.
1- Hot welding: There are two ways in this method:
• Butt welding, which is done by a sword element.
• Overlap welding, which is done by an ax element.
2- Cold boil:
In this method, first, the treads of 30-50 cm are separated from the two edges of the waterstop with a cutter, and then the two sides of the waterstop without treads are coated with PU glue, and a weight of about 50 kg is placed on the waterstop for 8-12 hours. After the time has passed, install the waterstop in its place.
Packing:

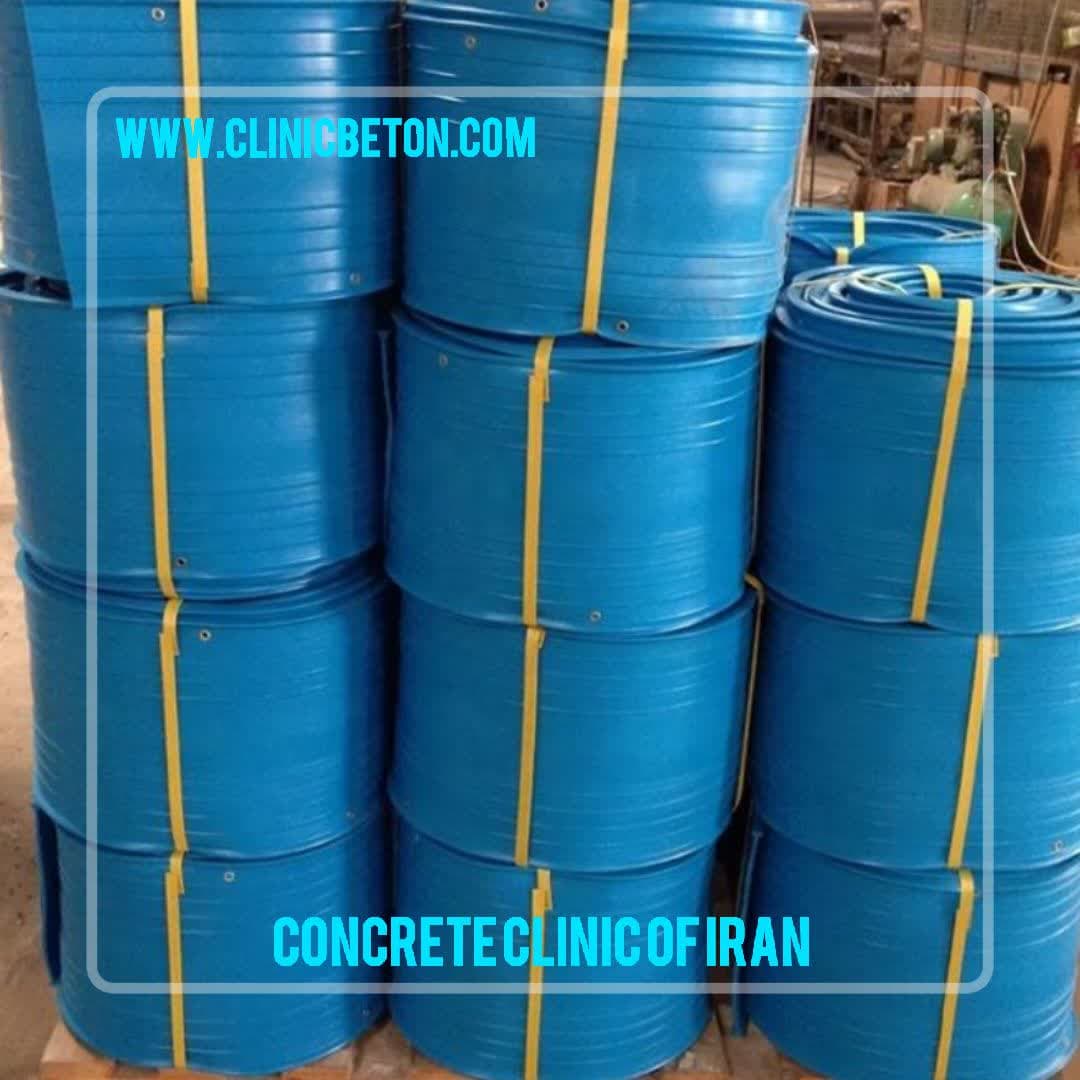

Waterstops of this company are offered in 25 meter rings. (Up to 100 meters can be supplied according to the order)
Maintenance:
The declared resistances of green concrete scent production waterstops will be stable for 6 months if stored in the original packaging and by pulling a tent (tarpaulin) to protect it from sunlight, oxygen and ozone.
Technical services:
The technical department of Rayehe Beton Sabz Company (technical and specialized concrete clinic of Iran) is ready to cooperate and provide services for the correct use of its materials. For more information, refer to the brochure or the specialized catalog of PVC waterstops.
