DEZOFIX 500
Paste and glue for planting reinforcement and bolts in concrete (according to ASTM C881-78 TYPE & BS 6319, ASTM C882-05 standards)
Description:
Dezofix 500 is a solvent-free 3-component product based on bisphenol A epoxy resin and polyamide hardener, which is designed to plant reinforcement and bolts in reinforced concrete.
Properties and effects:
• Very high adhesion to concrete and steel
• Extremely high tensile and bending resistances
• It is self-condensing
• High chemical resistance
• The lifetime of this material is longer than the lifetime of concrete
• It is not water absorbent
Application:

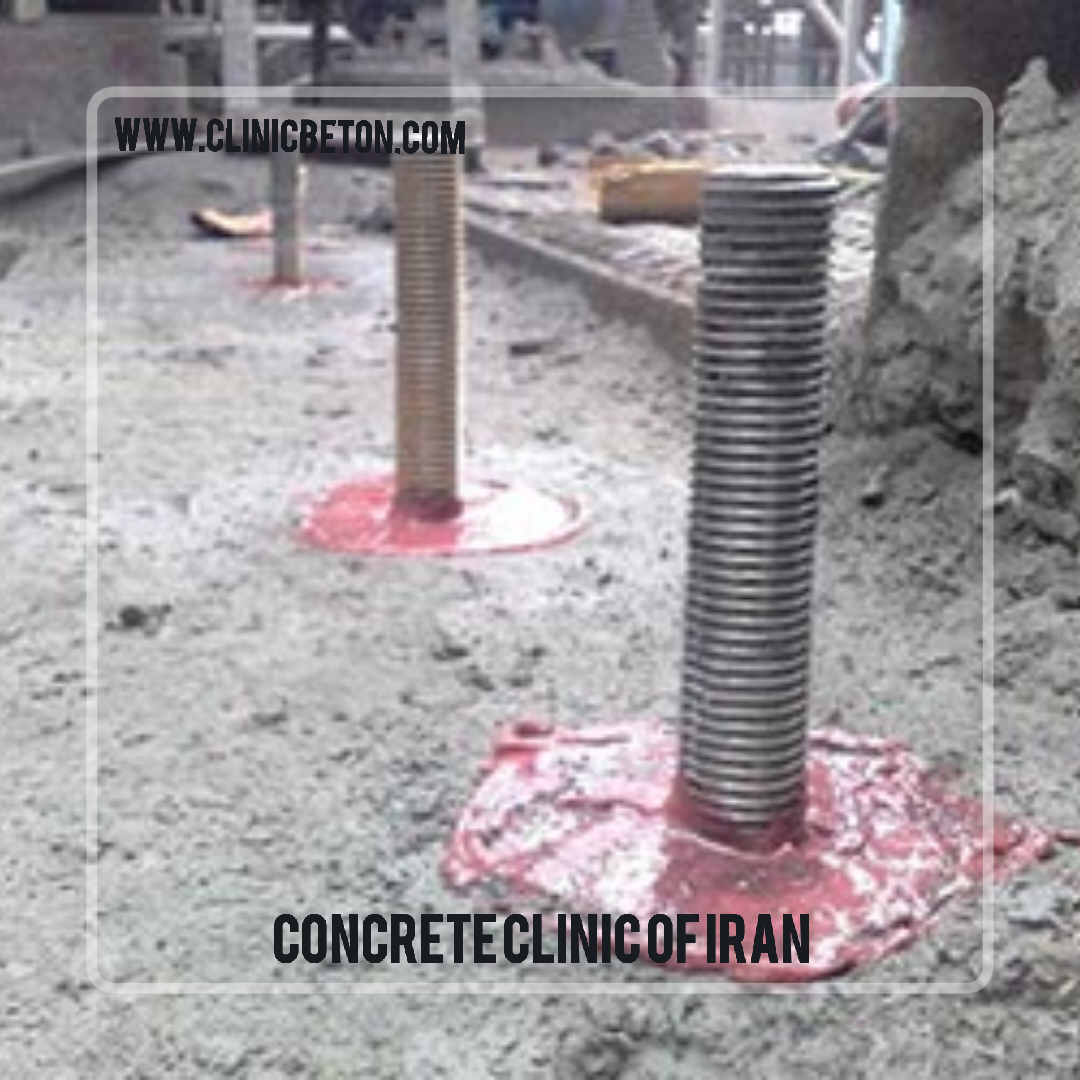

• Rebar and anchor bolt planting in concrete or stone
• Installing parts and fixing them
Consumption:
First, we calculate the volume of the cavity and subtract the volume of the rebar from it, and according to the specific weight of the rebar planting paste, which is equal to 2.2 grams per cubic centimeter, the amount of consumption is calculated.
Method of Use:
The surfaces of the place of use must be free of any grease, dust, rust, loose and unstable particles and moisture. The two components A and C should be mixed with an electric mixer to ensure complete mixing (about 2 to 4 minutes). Then add component B to the mixture and mix as before.
Pour the final mixture into the holes in less than 20 minutes and put the reinforcements inside the holes after derusting and cleaning any grease or pollutants, and by turning the reinforcement, its surfaces are not in full contact with the paste. Make sure to install Dezofix 500 rebar.
Note 1: Always combine the amount of ingredients that can be consumed within 20 minutes.
Note 2: It is necessary to strictly observe the proportions and never change the proportions without coordination with the technical office of the Technical and Specialized Concrete Clinic.
Note 3: Since the reaction of the two components is exothermic, the ambient temperature is very effective on the hardening rate. Therefore, be sure to inform the technical office of the company beforehand about the temperature of the performance area.
Note 4: Never expose the ingredients to direct sunlight before use.
Note 5: Never use solvent to dilute this material.
Inventory:
Store this product in a covered place away from sunlight and rain. Avoid excessive pressure. The useful life of the product is about 12 months if it is kept in proper conditions and in the original packaging.
Specifications:
• Appearance: component A is liquid, component B is liquid, component C is powder
• Color: component A is colorless and yellowish, component B is colorless, component C is gray
• Specific weight: A+B+C: 2.2 grams per cubic centimeter
• Usage time: 20 minutes after mixing the ingredients
• Surface drying time: 4 hours
• Final drying time: 24 hours
• Obtaining final resistance: 7 days
Chemical resistance:
• Sulfuric acid 70%: very good
• 20% nitrite acid: excellent
• 10% citric acid: excellent
• Lactic acid 10%: very good
• Sodium hydroxide 50%: Excellent
• Toluene: Excellent
• Gasoline: Excellent
• Hydrochloric acid 37%: excellent
• Phosphoric acid 50%: very good
• Tartaric acid 10%: excellent
• Sodium sulfate 25%: excellent
• Oxygenated water: bad
• Engine oil: Excellent
• Methanol: Good
• Acetone: bad, sodium sulfate 25%: excellent
• Oxygenated water: bad
• Engine oil: Excellent
• Methanol: Good
• Acetone: Bad
Mechanical resistance:
Compressive strength: 850 kg/cm2
Bending strength: 13.8 MPa
Tensile strength: 41.3 kg/cm2
Caution and safety:
Be sure to use gloves and safety glasses when using, as with all chemical-based products, it may cause damage. In case of possible contact with the eyes, immediately wash it with water for 15 minutes and consult a doctor. In case of contact with the skin, wash it carefully.
Quality confirmation:
All the products offered by Concrete Technical and Specialized Clinic are in accordance with international quality standards.
