COVER BOLT
Between the sealing bolt (sealing bolt cover)
Description:
Between the sealing bolts, in structures such as swimming pools, water and sewage tanks, sediment traps and basements, etc., which require sealing in terms of operation, it is very important to use the necessary sealing measures during construction. Because if these measures or necessary decisions are not taken into account, to meet the demands, the process of reconstruction and secondary sealing may be needed, which itself requires more costs and waste of energy and time. Therefore, it is always necessary to be careful in this field to make the necessary strictures.
Among the problems of cast iron watertight bolts, high cost, difficulty in installation and high weight can be mentioned. Therefore, plastic water-tight cover bolts are used for this purpose in the world today. This system, which is currently very popular in the world due to its high quality and economic potential, is also being used in many swimming pool and water and wastewater treatment plant projects in Iran.
Among the advantages of the sealing bolt (plastic sealing bolt cover), the following can be mentioned:
1. Economical - at least up to 5 times reduction of sealing costs
2. Precedence of workshop regulation in terms of length
3. One hundred percent sealing.
4. No corrosion
5. Ease of installation
6. Low weight

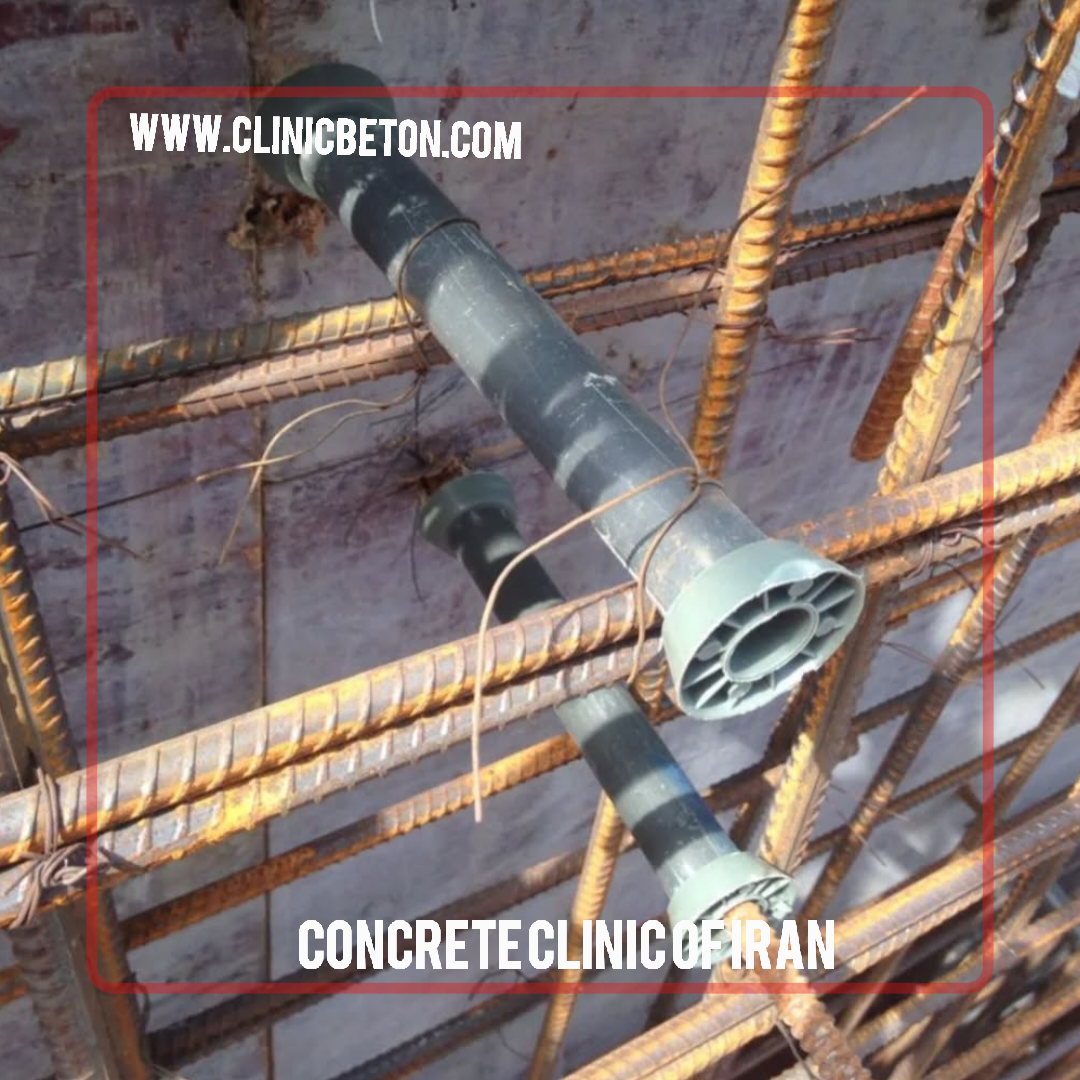

Between the bolts of the plastic seal consist of the following parts:
• Conical: 2 in each bolt
•Connector: 2 in each bolt
• PVC ribbed pipe: one number according to the length
• Simple rubber seal: 1 in each bolt
• Edged rubber seal: 2 in each bolt
Due to having simple assembly parts, the plastic sealing bolt can be easily produced during different productions. In the design of its parts, in the connection between the bolt (in the form of teeth) and the PVC pipe, it is considered to have a good connection with the concrete. The remarkable thing about this product is that it does not react with concrete in terms of making the main parts from polyvinyl chloride (p.v.c) raw materials.
Shelf life:
It can be used for up to 24 months in a covered environment and under storage conditions and in the original packaging.
Technical services:
The technical department of Rayehe Beton Sabz Company (technical and specialized concrete clinic of Iran) is ready to cooperate and provide services for the correct use of its materials.
