Concrete Spacers
Produced by Iran Concrete Technical Clinic Group (Clinic Beton Iran)
Brand: RBS-CONTECH
Overview
Concrete spacers are essential components in reinforced concrete structures, ensuring the correct positioning and coverage of reinforcing bars (rebars) within the formwork. High-quality spacers guarantee proper concrete cover, leading to enhanced durability, longevity, and load-bearing capacity for concrete elements.

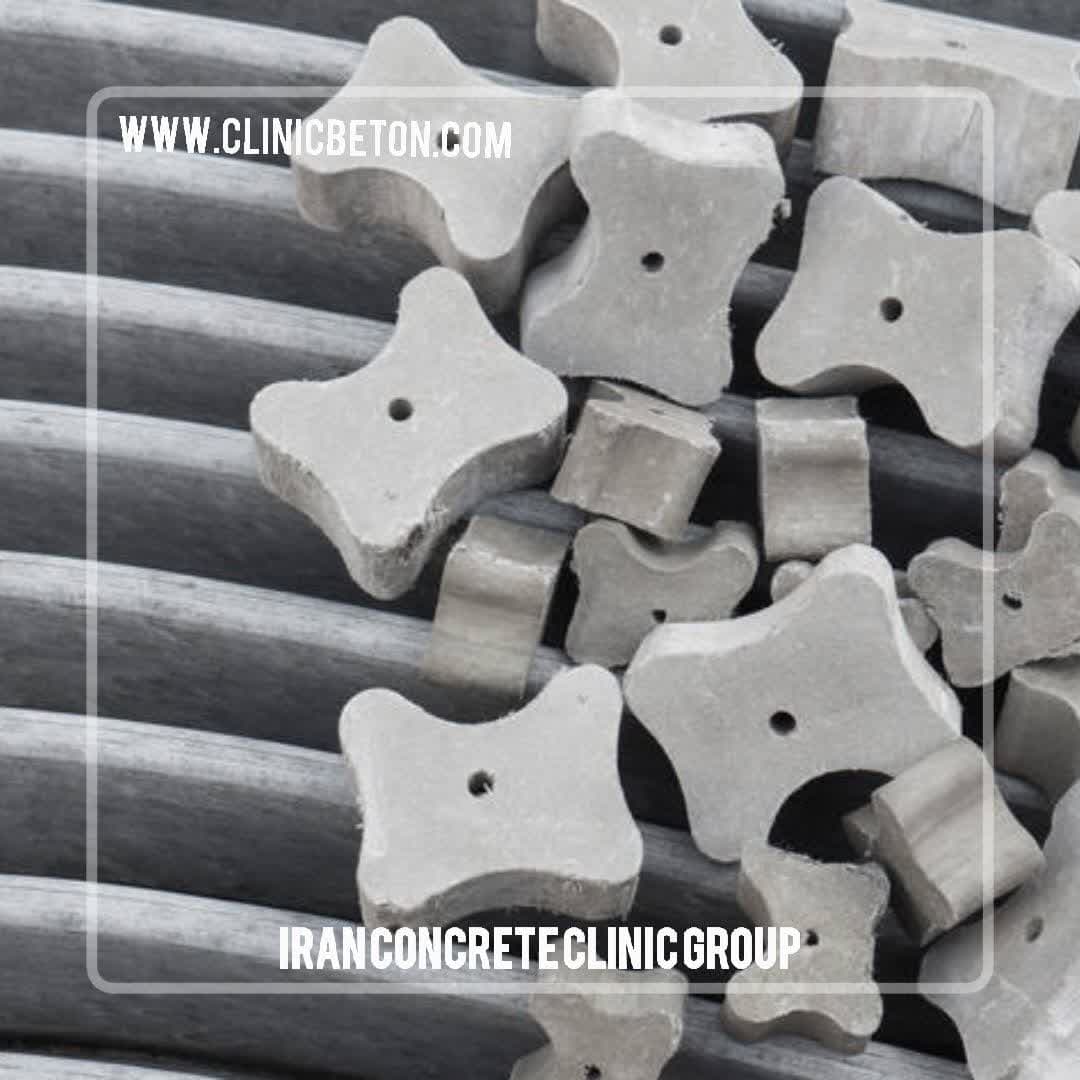

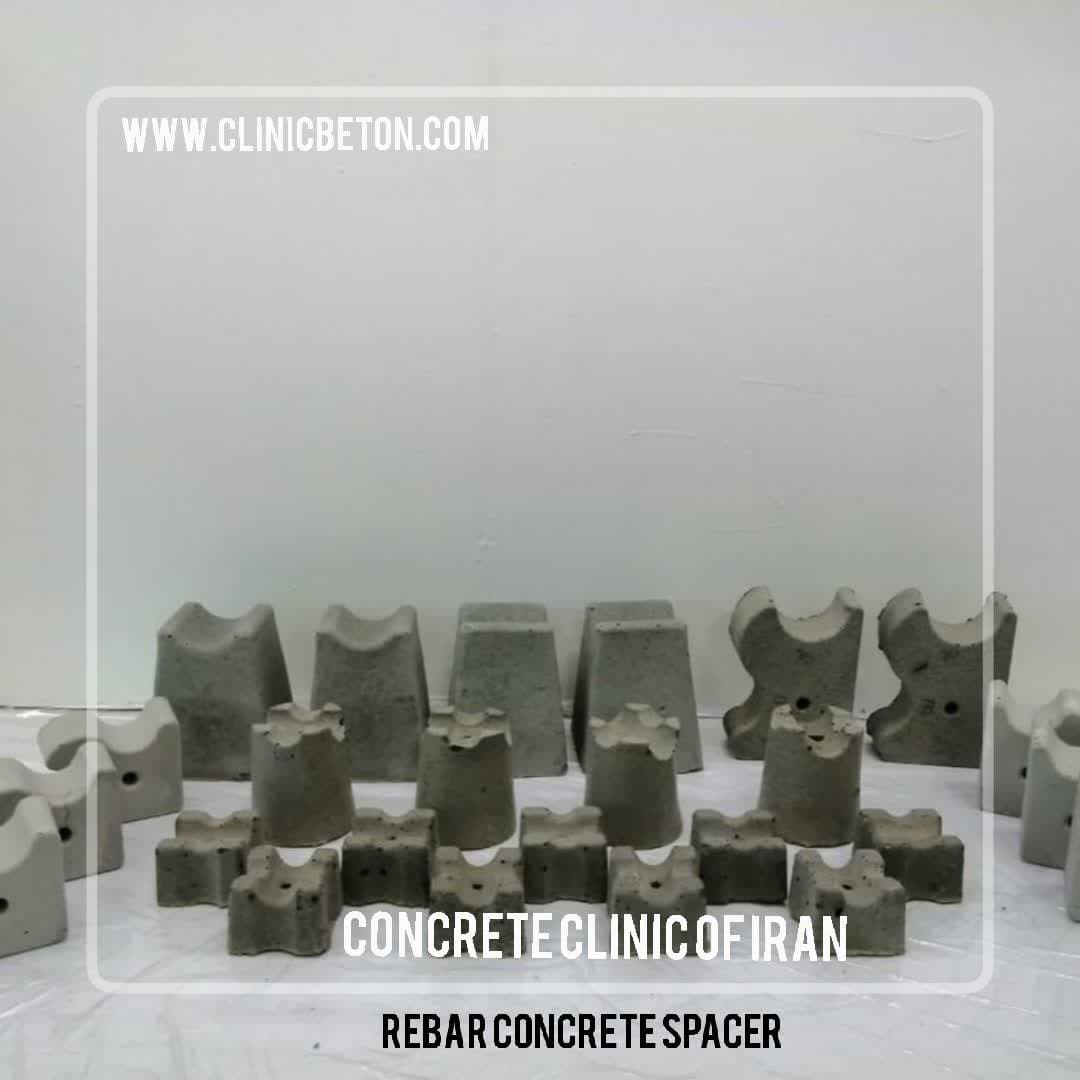

Types of Concrete Spacers
| Type | Common Names | Typical Applications | Available Cover Sizes (mm) | Recommended for |
|---------------------|---------------------|-----------------------------------|----------------------------|---------------------|
| Wheel Spacer | Circular Spacer | Columns, walls, vertical rebars | 15, 20, 25, 30, 40 | Vertical elements |
| Chair Spacer | Bar Chair, Stool | Slabs, beams, horizontal rebars | 20, 25, 30, 40, 50 | Horizontal slabs |
| Block Spacer | Block, Cube | Foundations, heavy-duty slabs | 25, 30, 40, 50, 75 | Mass elements |
| Clip-on Spacer | Snap-on, Gripper | Precast, thin-walled elements | 15, 20, 25, 30 | Precast segments |
| Heavy-duty Spacer | High Load Spacer | Industrial floors, heavy elements | 40, 50, 75, 100 | High load areas |
Technical Data
| Property | Value/Description |
|------------------------|--------------------------------------------------------------------------------------|
| Material | High-strength precast concrete with optimized mixture design |
| Compressive Strength | ≥ 35 MPa |
| Water Absorption | < 6% |
| Fire Resistance | Non-combustible, up to 1200°C (in line with concrete properties) |
| Dimensional Tolerance | ±1mm |
| Compatibility | Fully compatible with all concrete classes |
| Corrosion Resistance | 100% (No metallic components) |
| Color | Natural gray (other colors on request) |
| Size Range | Cover: 15 – 100mm (custom on request) |
| Standards Compliance | EN 206, DIN 488, ACI 315, BS 7973 |
Product Features
Optimum concrete cover & precise rebar positioning
High load-bearing capacity
Durable, non-corrosive, non-reactive
Suitable for all environmental conditions
Produced in various shapes for different reinforcement configurations
No risk of spalling, bleeding, or concrete contamination
Easy installation during rebar fixing
Custom designs available for special projects
Typical Uses
Slabs, Foundations, Columns, Beams
Retaining Walls, Industrial Floors, Water Tanks
Bridges, Tunnels, Precast Elements
Installation Guidelines
Select the correct spacer type and cover size as per project specification.
Position spacers at specified intervals to prevent movement during concrete pouring (typically every 500-800mm).
Ensure firm placement on stable and clean surfaces.
For vertical applications (walls, columns), use wheel/clip-on spacers. For horizontal elements (slabs, foundations), use chair/block spacers.
Quality Assurance
All spacers are manufactured under strict quality control according to international standards and regularly tested for strength, durability, and dimensional accuracy.
Ordering Information
For consultation, product selection, or ordering, contact our technical experts at Clinic Beton Iran.
Phone: +98-21-88070173 / +98-21-88584906
Mobile: +98-9102333497 / +98-9120916271 / +98-9120916272
Email: clinicbeton.com(AT)gmail.com
Website: https://www.clinicbeton.com
Note: Special spacers and tailored solutions are available on request for unique project needs.
