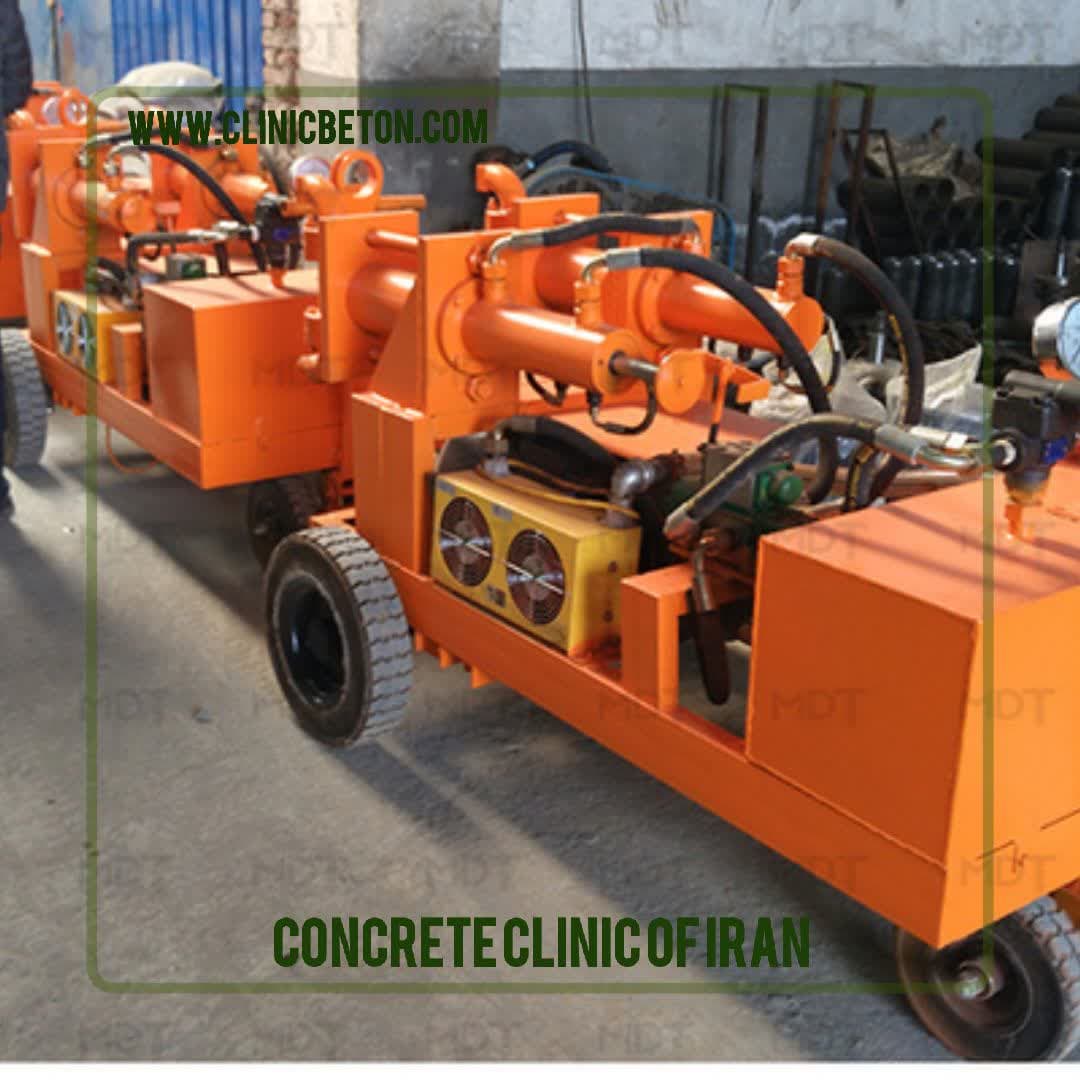

Cementitious Grout Injection Pump
Producer: Iran Concrete Technical Clinic Group (Clinic Beton Iran)
Brand: RBS-CONTECH
Websites: https://www.clinicbeton.com | https://www.rbs-contech.com
Product Description
The Cementitious Grout Injection Pump is a robust and reliable machine engineered for injecting various grout mixtures, especially cementitious grouts, into cracks, voids, ducts, and cavities in concrete structures. Engineered for both construction and repair projects, this pump is ideal for waterproofing, structural strengthening, soil stabilization, post-tensioning ducts, and anchoring applications.
Technical Specifications
| Property | Value / Description |
|-----------------------------|---------------------------------------------|
| Model | RBS Cement Grout Injection Pump Series |
| Producer | Clinic Beton Iran (RBS-CONTECH) |
| Pump Type | Piston or Diaphragm (based on order) |
| Max Flow Rate | 8 – 16 liters/min (customized on request) |
| Max Pressure | 8 – 40 bar (depending on model) |
| Motor Power | 1.1 – 2.2 kW |
| Power Source | 220/380V AC, 50Hz |
| Drive | Electric Motor / Pneumatic (optional) |
| Hopper Capacity | 30 – 45 liters |
| Max Aggregate Size | 3 mm |
| Delivery Distance | Up to 80 meters (horizontal) |
| Delivery Height | Up to 40 meters (vertical) |
| Weight | 45 – 85 kg (model dependent) |
| Dimensions | Approx. 60 x 45 x 85 cm |
| Material of Construction | Powder-coated steel for body & hopper |
| Hose Length | 5 – 30 meters (as required) |
| Cleaning | Easy disassembly and washing |
| Standards Compliance | CE, ISO, EN 12004, ISIRI 7134 |
Key Features
Suitable for all cementitious and mineral grouts, micro-cements, ready-mixed grouts, and selected micro-concretes
Reliable high-pressure operation for deep grout penetration
Light, portable, and easy to transport and set up on construction sites
Minimal maintenance and easy cleaning after use
Compatible with chemical admixtures, waterproofers, and expansive grouts
Long service life due to wear-resistant construction
Precision pressure and flow control for sensitive applications
Available with various nozzles and hose sizes for different projects
Custom models available for high-volume or high-pressure applications
Typical Applications
Injection of cementitious grout into cracks, joints, and honeycombed concrete
Pressure grouting for structural strengthening and repair
Injection of anchors and bolts
Soil and rock grouting for ground stabilization
Post-tensioning duct grouting in prestressed concrete structures
Waterproofing basements, tunnels, shafts, and tanks
Leak sealing in concrete structures and pipes
Operating Instructions (Summary)
Place pump on stable, level ground and connect hoses and accessories as required.
Prepare grout mixture (according to project specification) and fill hopper.
Power the pump and prime the system until grout discharges smoothly from outlet.
Regulate pressure and flow as needed for safe and efficient injection.
After completion, flush pump and hoses with clean water to prevent clogging.
Maintenance
Regularly clean all parts after each use.
Inspect hoses, seals, and valves for wear or clogging.
Lubricate moving parts as specified in the user manual.
Perform periodic technical service to maintain optimal performance.
Ordering & Support
Contact our technical experts for consultation, selection, and ordering:
Phone: +98-21-88070173, +98-21-88584906
Mobile: +98-9102333497, +98-9120916271, +98-9120916272
Email: clinicbeton.com(AT)gmail.com
Web: https://www.clinicbeton.com | https://www.rbs-contech.com
Note:
Special pump models and grouting accessories are available for large-scale or customized projects.
