Datasheet

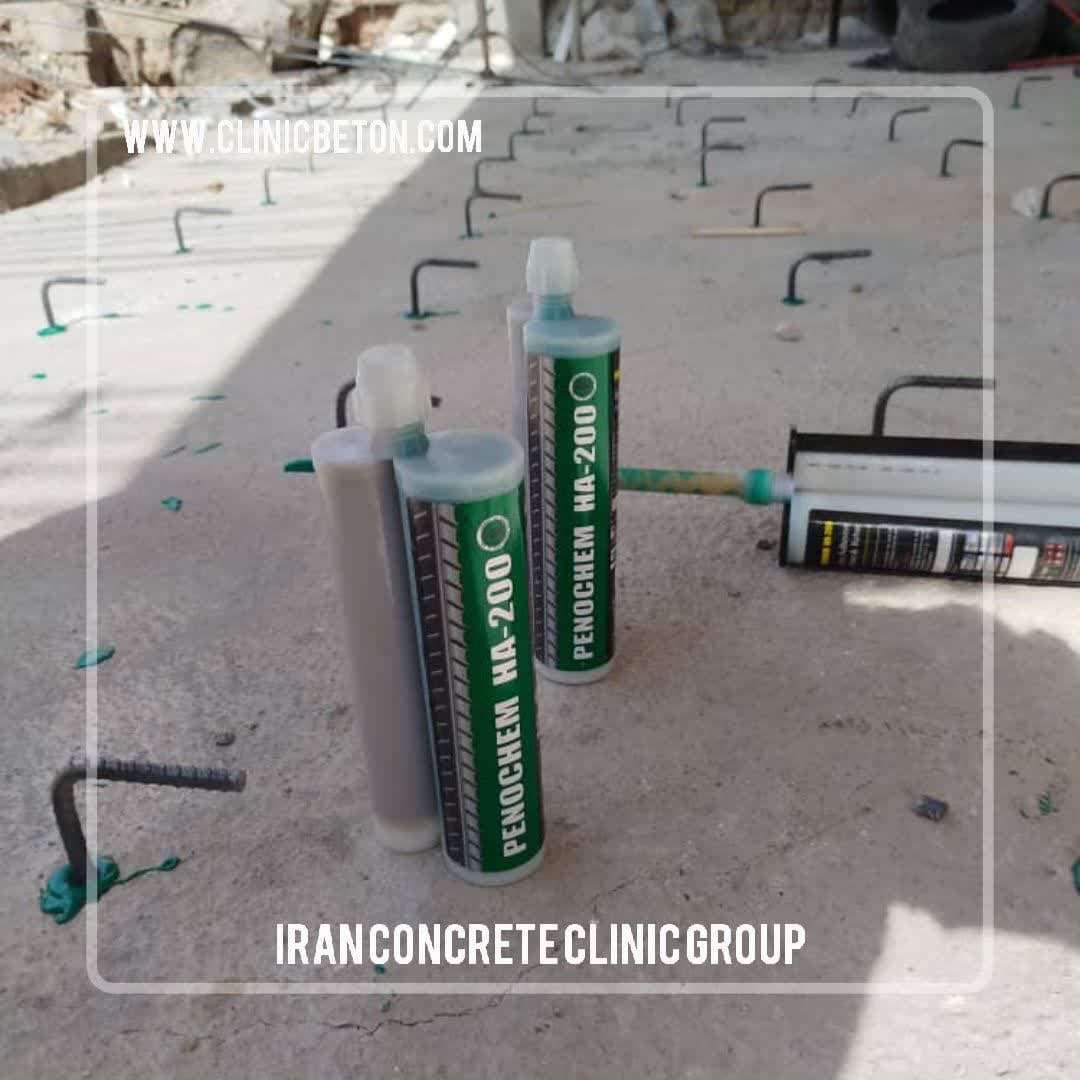

Penochem HA-200 Green Epoxy Cartridge Rebar & Anchor Adhesive
Mix Ratio 2:1 – Volume: 450 ml – Green Color
Producer: Iran Concrete Technical Clinic Group (Clinic Beton Iran)
Brand: RBS-CONTECH
Websites: https://www.clinicbeton.com | https://www.rbs-contech.com
Product Description
Penochem HA-200 is a high-performance, two-component epoxy adhesive with a 2:1 mix ratio, specifically formulated for anchoring rebars, threaded rods, bolts, and anchors into concrete, masonry, and natural stone substrates. Delivered in a practical and easy-to-use 450 ml coaxial cartridge, its distinctive green color provides visual confirmation of proper mixing and placement. Designed for both professional construction and repair projects, Penochem HA-200 delivers outstanding mechanical strength and chemical durability.
Technical Specifications
| Property | Value / Description |
|-------------------------------|------------------------------------------------------|
| Product Name | Penochem HA-200 |
| Color | Green (mixed product) |
| Packaging | 450 ml coaxial cartridge with static mixing nozzle |
| Base | Epoxy resin, two-component |
| Mixing Ratio (by volume) | 2 : 1 (Resin : Hardener, automatic in cartridge) |
| Density (mixed) | 1.65 ± 0.05 g/cm³ |
| Compressive Strength | > 70 MPa (ASTM C579) |
| Pull-Out/Bond Strength | > 14 MPa (to dry concrete) |
| Tensile Strength | > 25 MPa |
| Modulus of Elasticity | ~4000 MPa |
| Working (Gel) Time @20°C | 10–18 min, temperature dependent |
| Full Cure Time @20°C | 24 hours |
| Application Temperature | 5°C to 35°C |
| Chemical Resistance | Excellent (resistant to water, acids, alkalis, salts)|
| Shrinkage | None (non-shrinking) |
| VOC Content | Low, solvent-free |
| Shelf Life | 12 months (unopened, dry conditions) |
| Standards Compliance | EN 1504-6, ASTM C881, EAD 330499, ETA |
Key Features
Superior bond for anchors and rebars in both cracked and non-cracked concrete
Distinctive green color ensures visual quality control
Precise 2:1 mix ratio delivered automatically by cartridge
Suitable for vertical, horizontal, and overhead applications
High early and final strength, rapid hardening
Excellent workability, easy extrusion and minimal waste
Strong and durable even in damp substrates
Solvent-free, low-odor and environment-friendly
For heavy-duty structural, seismic, and retrofit anchoring
Typical Applications
Anchoring reinforcing bars (rebar), threaded rods, bolts, and anchors
Post-installed rebar connections for extensions and retrofitting
Heavy machinery and baseplate installation
Façade, railing, and barrier anchorings
Structural repairs, bridges, tunnels, and infrastructure projects
Seismic upgrades and safety-critical fastenings
Application Instructions
Drill the hole to required diameter & depth.
Clean hole thoroughly using a steel brush and compressed air or blower.
Insert the cartridge into a suitable gun, fix the static mixer nozzle, and extrude a small amount (until a uniform green color is achieved).
Inject adhesive from the bottom of the hole upwards, filling it about two-thirds.
Insert rebar/anchor with a gentle twisting motion for optimal wetting and contact.
Do not disturb until working time and then full cure time are achieved.
Load after full curing (see technical table).
Refer to detailed application guidelines and safety data sheet (MSDS) supplied with the product.
Quality Assurance
Manufactured under strict QC to international standards
Each batch tested for strength, curing, and chemical resistance
Certificate of Analysis (COA) and technical documentation available
Ordering & Support
For technical consultation and ordering, contact us at:
Phone: +98-21-88070173, +98-21-88584906
Mobile: +98-9102333497, +98-9120916271, +98-9120916272
Email: clinicbeton.com(AT)gmail.com
Web: https://www.clinicbeton.com | https://www.rbs-contech.com
Note:
Full accessories (application gun, mixer nozzles), technical advice, and on-site implementation are available from Clinic Beton Iran and RBS-CONTECH.
