GFRP Fiber (Glass Fiber Reinforced Polymer)
Producer: Iran Concrete Technical Clinic Group (Clinic Beton Iran)
Brand: RBS-CONTECH
Websites: https://www.clinicbeton.com | https://www.rbs-contech.com
Product Description
GFRP (Glass Fiber Reinforced Polymer) fibers are high-performance composite materials designed for structural reinforcement in concrete, masonry, steel, and timber construction. With outstanding mechanical, chemical, and environmental properties, RBS-CONTECH GFRP fibers are ideal for strengthening, rehabilitation, seismic upgrading, and innovative construction solutions.
Technical Specifications
| Property | Value / Description |
|-----------------------------|---------------------------------------------|
| Product Type | GFRP (Glass Fiber Reinforced Polymer) Fiber |

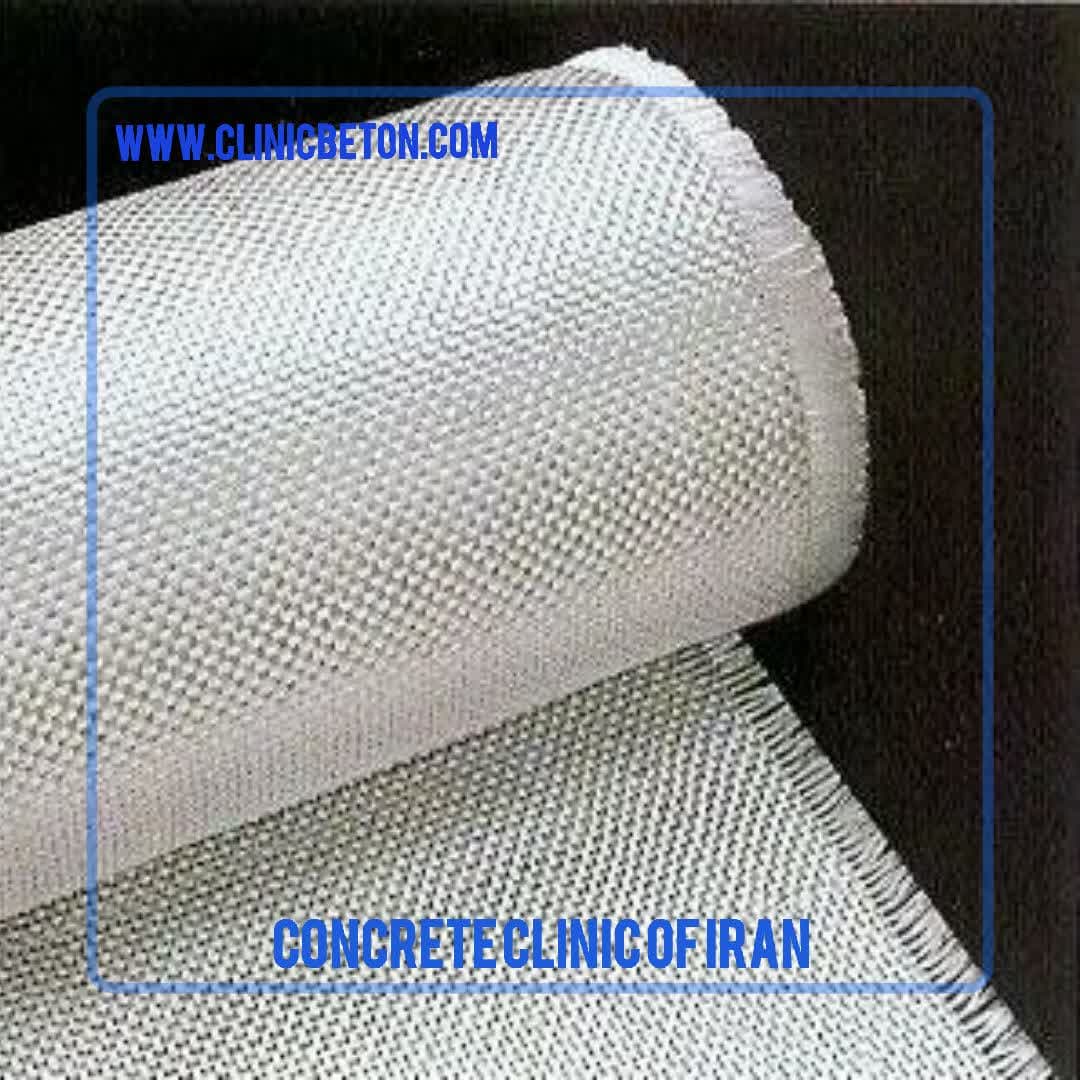

| Appearance | White or translucent, continuous filaments or mesh/fabric |
| Tensile Strength | 1200 – 1700 MPa (depending on grade/type) |
| Tensile Modulus | 45 – 60 GPa |
| Elongation at Break | 2.2% – 2.7% |
| Density | 1.90 – 2.00 g/cm³ |
| Fiber Diameter | 13–20 μm |
| Areal Weight (for fabrics) | 200–600 g/m² (customized on request) |
| Thickness (for sheet) | 0.13–0.30 mm |
| Width (for sheet/roll) | 50, 100, 200 mm (other sizes on request) |
| Roll Length (sheet/strip) | 50–100 m |
| Standard Compliance | ASTM D7205, ACI 440.1R, EN 15422 |
| Thermal Expansion | +6~9 × 10⁻⁶ /°C |
| Electrical Conductivity | Non-conductive (electrically insulating) |
| Corrosion Resistance | Excellent |
| Alkali/Acid Resistance | Excellent |
| Water Absorption | Negligible |
| Color | White (natural glass) |
| Storage Conditions | Store dry, cool, away from sunlight |
Key Features
Lightweight, high tensile strength and modulus
Exceptional corrosion, chemical, and alkali resistance
Non-corrosive, non-magnetic, and electrically insulating
Excellent adhesion with common resins (epoxy, vinylester, etc.)
Easy handling and flexible installation
Thermal and dimensional stability
Typical Applications
Structural strengthening and retrofitting of beams, columns, slabs, and walls
Seismic retrofit and confinement of concrete or masonry
Repair and reinforcement of bridges, tunnels, silos, tanks, and chimneys
Precast panels, pipes, and innovative lightweight composites
Civil, industrial, marine, and infrastructure projects
Applications where corrosion resistance and electrical insulation are critical
Installation Guidelines
Prepare the substrate: ensure it is clean, dry, and load-bearing
Apply primer/bonding resin as specified for the system
Impregnate GFRP fiber with resin, lay by wrapping or laminating technique
Remove air pockets/distribute resin evenly using roller
Allow to cure as specified by resin manufacturer
For chopped GFRP, admix evenly in concrete or mortar matrix
Always follow the detailed installation manual and safety datasheet provided with the product.
Quality Assurance
Complies with ASTM, ACI, and EN standards
Each batch is rigorously tested for mechanical and chemical performance
Certificate of Analysis (COA) and test reports available upon request
Ordering & Support
For technical support, product selection, or quotation, contact:
Phone: +98-21-88070173, +98-21-88584906
Mobile: +98-9102333497, +98-9120916271, +98-9120916272
Email: clinicbeton.com(AT)gmail.com
Web: https://www.clinicbeton.com | https://www.rbs-contech.com
Note:
GFRP fibers are available as continuous filament, sheet, mesh, or chopped fiber. Full support for composite system installation, compatible resins, and engineering advice is available through Clinic Beton Iran and RBS-CONTECH.
