Datasheet

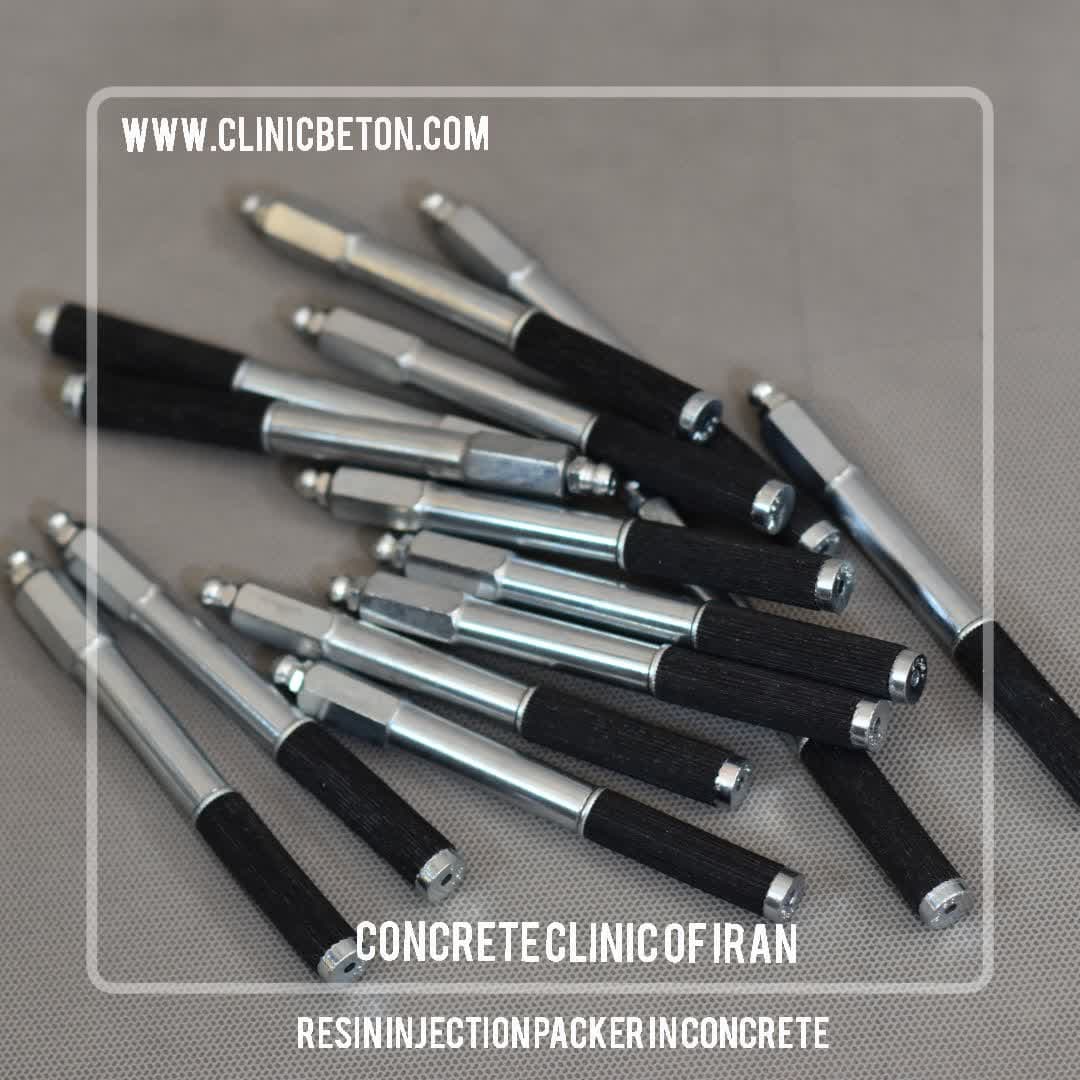

Resin Injection Packers – For Epoxy & Polyurethane Injection
Producer: Iran Concrete Technical Clinic Group (Clinic Beton Iran)
Brand: RBS-CONTECH
Websites: https://www.clinicbeton.com | https://www.rbs-contech.com
Product Description
Resin Injection Packers are integral components for high-pressure injection of epoxy and polyurethane resins into concrete cracks, joints, and voids. RBS-CONTECH injection packers are designed for reliable connection between injection pumps and the structure, ensuring uniform resin delivery and maximum penetration during structural repair, waterproofing, and consolidation works.
Technical Specifications
| Property | Value / Description |
|-------------------------|------------------------------------------------------|
| Type | Mechanical & Hammer-in (knock-in) Packers |
| Body Material | Zinc-plated steel / Aluminum alloy |
| Head Type | Zerk (grease), flat, or threaded head |
| Head Material | Zinc-plated steel or brass |
| Lengths Available | 50 mm, 75 mm, 100 mm, 120 mm, 150 mm (custom on req.)|
| Diameter (Ø) | 8 mm, 10 mm, 13 mm, 14 mm, 16 mm, 18 mm, 20 mm |
| Rubber Material | Nitrile Rubber (NBR), oil & chemical-resistant |
| Rubber Length | 15 – 50 mm |
| Max Injection Pressure | Up to 160 bar (model dependent) |
| Temperature Resistance | -10°C to +80°C (short term to 100°C) |
| Connector Fitting | M6, M8, Zerk, 1/4" NPT or custom |
| Reusability | Single-use recommended for structural safety |
| Compatibility | Suitable for epoxy and polyurethane resins |
| Standards Compliance | Internal QC, ISO 9001 (factory) |
Key Features
High-pressure & leak-proof performance
Fast, easy installation in pre-drilled holes (hammer-in or mechanical set)
Corrosion-resistant metal body for extended site durability
NBR rubber provides effective sealing and prevents leakage
Multiple sizes for different crack widths, depths, and application types
Compatible with all injection pumps, hoses, and coupling systems
Ensures uniform distribution and deep permeation of resin
Simple and secure removal after curing process
Typical Applications
Structural crack injection & repair in concrete walls, slabs, foundations
Injection waterproofing in basements, tunnels, dams, retaining walls
Polyurethane foam injection for water-cutting and leak sealing
Epoxy injection for structural consolidation, restoration, and bonding
Soil grouting and micro-void filling in civil engineering
Installation Guidelines
Drill a suitable-diameter, clean hole to desired depth (at specified intervals along crack/joint).
Insert the packer into hole; tap with a hammer (for hammer-in) or tighten mechanically using wrench/spanner until sealed.
Connect injection pump to the packer head using the appropriate coupling.
Inject resin as specified, monitoring pressure to ensure complete crack/joint filling.
After curing, remove packer by unscrewing or tapping out; seal the hole with repair mortar.
Follow detailed application procedures and safety recommendations provided with the product and resin system.
Quality Assurance
Manufactured under strict quality control in accordance with ISO 9001 standards
Each batch tested for leakage, dimension, and mechanical strength
Technical certificates and performance test data available on request
Ordering & Support
For technical advice, suitable packer selection, or bulk/wholesaler orders, contact:
Phone: +98-21-88070173, +98-21-88584906
Mobile: +98-9102333497, +98-9120916271, +98-9120916272
Email: clinicbeton.com(AT)gmail.com
Web: https://www.clinicbeton.com | https://www.rbs-contech.com
Note:
A wide range of injection packer sizes, connection types, and special models are available through Clinic Beton Iran and RBS-CONTECH. Technical support and accessories for complete injection systems are provided.
